SPAD.neXt VoiceAttack plugin

VoiceAttack ≥ 1.5.12.24 required!

  • Quit VoiceAttack.
  • In <VoiceAttackInstallDir>\Apps create a directory "SPAD.neXt".
  • Copy C:\Program Files\SPAD.neXt\GamePlugins\Voiceattack\snVoiceAttack_plugin.dll to that directory.

For the plugin to work, you'll need to enable Apps in VoiceAttack.

VoiceAttack and SPAD.neXt need to run on the same computer.

General

The plugin uses the variable snSTATUS ("OK" or "ERROR") to signal whether the call was successful. If snSTATUS is "ERROR", the variable snMESSAGE will contain the error message.

Always check the "Wait for plugin function to finish" checkbox.

Using the boolean variable snDEBUG you can toggle debug output of the plugin on and off.

Functions

Available "context" values for VoiceAttack:

GetValue

Retrieve a variable value from SPAD.neXt.

Input: decimal VariableName to contain the full variable name from SPAD.neXt (e.g. LOCAL!SYSTEM READY).

Important: all ":" (colon) need to be replaced by "!" (exclamation mark) due to a limitation of VoiceAttack.

Output: the variable named like the value you queried (e.g. LOCAL!SYSTEM READY) will contain the variable value.

VoiceAttack GetValue configuration

SetValue

Set a variable value within SPAD.neXt.

Input: decimal variableName (e.g. LOCAL!SYSTEM READY) needs to contain the new value. Again, replace ":" with "!".

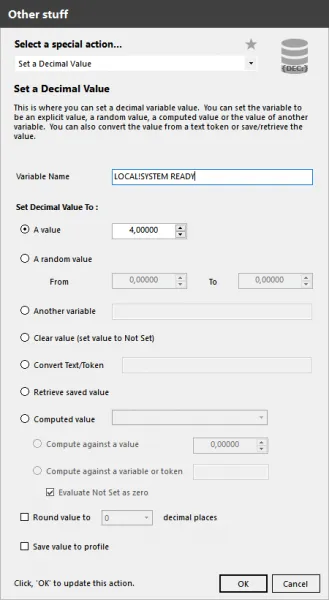

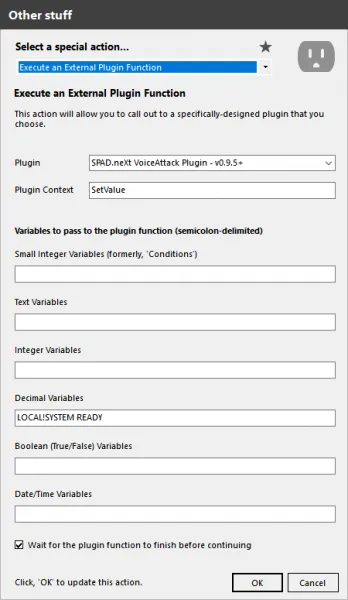

VoiceAttack SetValue decimal configuration VoiceAttack Execute SetValue configuration

EmulateEvent

Execute an event within SPAD.neXt.

VoiceAttack EmulateEvent configuration

The following text variables need to be filled and passed to the call:

  • snDevice — the target device (e.g. '06A3:0D06:0' for the first Multi Panel in the system).
  • snSwitch — the switch to execute the event on (e.g. 'MULTIPANEL_BUTTON_AP' for the autopilot button).
  • snEvent — the event to execute (e.g. 'VALUEON' to emulate a short press).
  • snParameter — the parameter needed by the event, if any.

To see the devices/switches/events available on your system, in SPAD.neXt navigate to Settings → Application → Expert and press the button next to the "Remote Service" setting — it generates a PDF document for your system.

Download a demo profile

Source Code

For reference, the plugin's source code is available on GitHub.
